Fully automatic high-speed strapping machine for 15.5 mm PP strap, with 650 × 500 mm arch, adjustable tension, and foot-bar operation.
Security policy
Secured authentic purchases and reliable payment gateways.
Customer Service
Ships on stock items within same workweek.
Return policy
Customer support by amiable representatives 24/7.

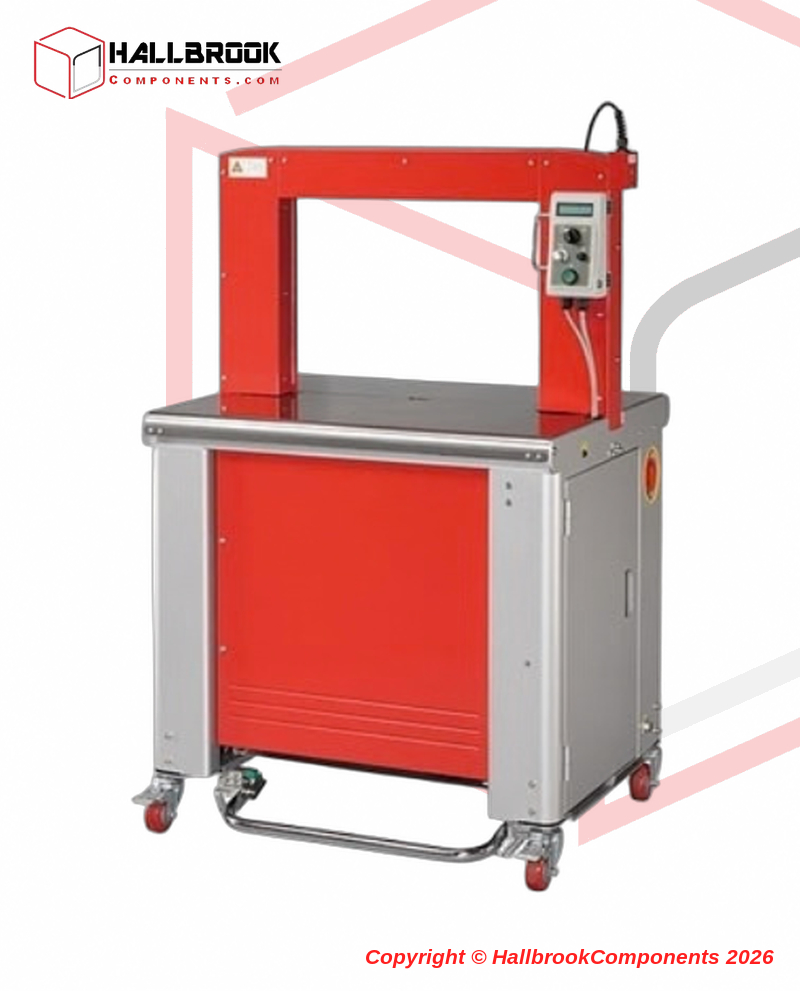

The Transpak TP-702-15W is a fully automatic high-speed strapping machine designed for efficient and reliable packaging operations. It operates at speeds of up to 60 straps per minute and is designed for 15.5 mm PP strap.
The machine features electrically adjustable tension control, automatic strap feeding, a front foot-bar switch, and a mobile design with castor wheels. Its 650 × 500 mm arch makes it suitable for a wide range of cartons and packaged products.
Option
-Photocell with timer box
Technical Specifications | |
|---|---|
Model |
STEP TP-702-15W |
Arch Size |
W650 × H500 mm |
Strap Type |
PP strap |
Strap Width |
15.5 mm |
Strap Core |
Ø200 mm |
Strapping Speed |
Up to 60 straps/min |
Tension Range |
1–45 kg, electrically adjustable |
Machine Dimensions |
1350 × 770 × 1650 mm |
Net Weight |
167 kg |
Electrical Requirements |
230 V, 50 Hz, 1Ph |
Item Number |
41190215-A65.50 |
Fully automatic high-speed strapping machine for 15.5 mm PP strap, with 650 × 500 mm arch, adjustable tension, and foot-bar operation.
