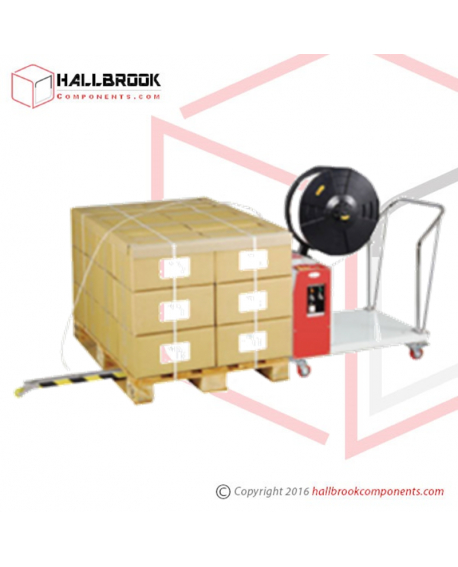

TP 502 MV or Mini Vertical. a Semi-Automatic Pallet Strapping Machine, suitable for corrugated card boards, concrete blocks and loaded pallet with cardboard boxes holding any type of products. Provides ergonomic and cost – effective solution for low volume vertical pallet strapping applications.
Security policy
Secured authentic purchases and reliable payment gateways.
Customer Service
Ships on stock items within same workweek.
Return policy
Customer support by amiable representatives 24/7.
A Semi – Automatic Pallet Strapping Machine, suitable for corrugated card boards, concrete blocks and loaded pallet with cardboard boxes holding any type of products. Provides ergonomic and cost – effective solution for low volume vertical pallet strapping applications. Eliminates the use of manual tools, dispensers and can be moved easily beside the load you want to strap without moving the pallet.
|
Specification |
||
|
Description |
TP-502MV |
|
|
Strap Type |
PP Strap |
|
|
Strap Width |
9mm, 12mm, 15.5mm |
|
|
Strap Thickness |
0.6 – 0.8mm |
|
|
Strapping Speed |
18sec., 1 Strap (Package Size 1200L x 800W x 1000H mm) |
|
|
Min. Package Height |
380mm (Pallet is included) |
|
|
Strap Core Inner Diameter |
200mm (280mm is also available) |
|
|
Tension Range |
8 Kg – 70 Kg |
|
|
Length of the Sword |
1250mm |
|
|
Net Weight |
93 Kg |
|
|
Machine Dimension |
585W x 2315D x 1074H mm |
|
|
Power Consumption |
0.33 Kw |
|
|
Temperature of Working Environment |
5 – 40°C |
|
|
Electrical Requirements |
230V 50Hz 1Ph |
|
|
Request for other type of Supply Voltage |
||
TP 502 MV or Mini Vertical. a Semi-Automatic Pallet Strapping Machine, suitable for corrugated card boards, concrete blocks and loaded pallet with cardboard boxes holding any type of products. Provides ergonomic and cost – effective solution for low volume vertical pallet strapping applications.
