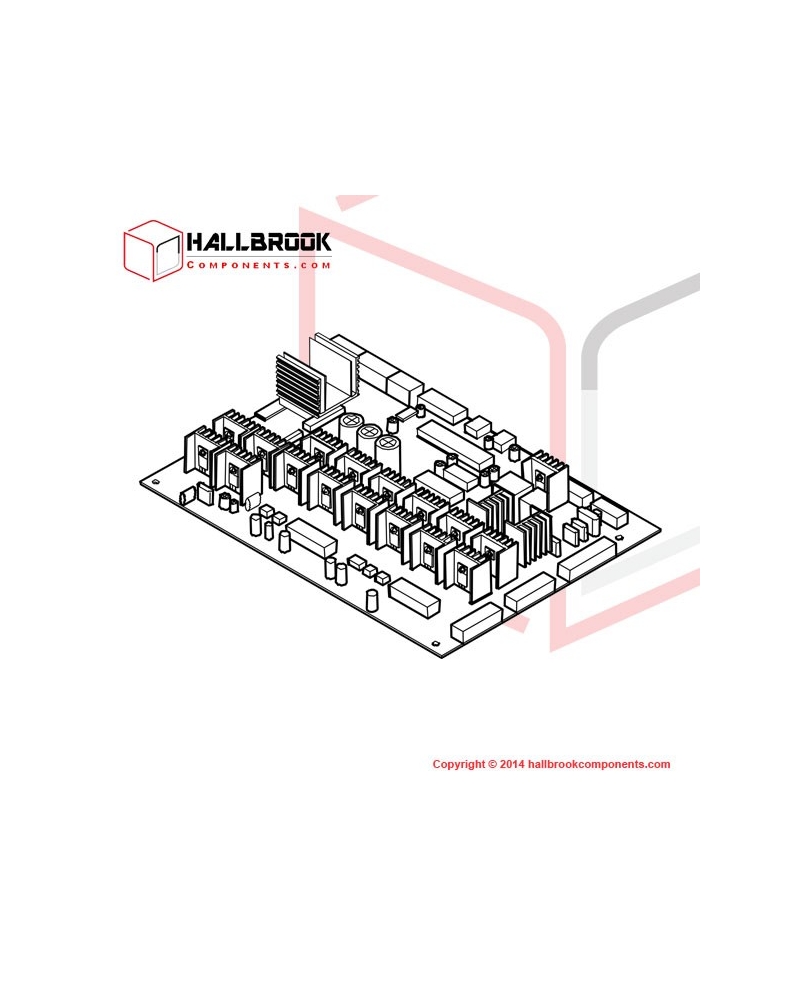

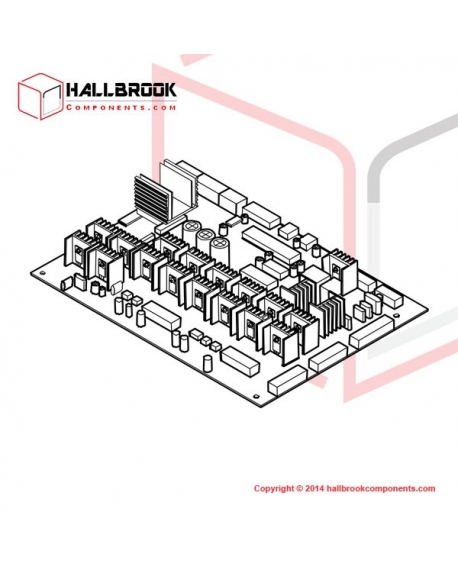

T7-6-10140 P. C. Board (For TP-701)

The TP-701 main PCB (Printed Circuit Board) comes complete with newest version of software progammed to the Eprom and is useble for all ages and arch sizes of the TP-701 strapping machines series from Transpak.

To replace unscrew the back panel, then the controlbox panel, unplug all the connectors going to the PCB, then remove the screws holding the PCB in place. Check teh demaged PCB for faults, burn marks or alike that can confirm that it is the PCB that is damaged. If so you need a new one. The new PCB is mounted in reverse order of the dsiassembly.
