Newly Added Transpak TP-702-59 Automatic Strapping Machine

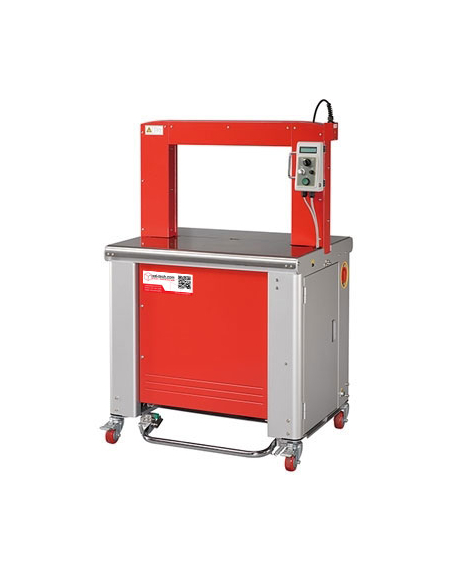

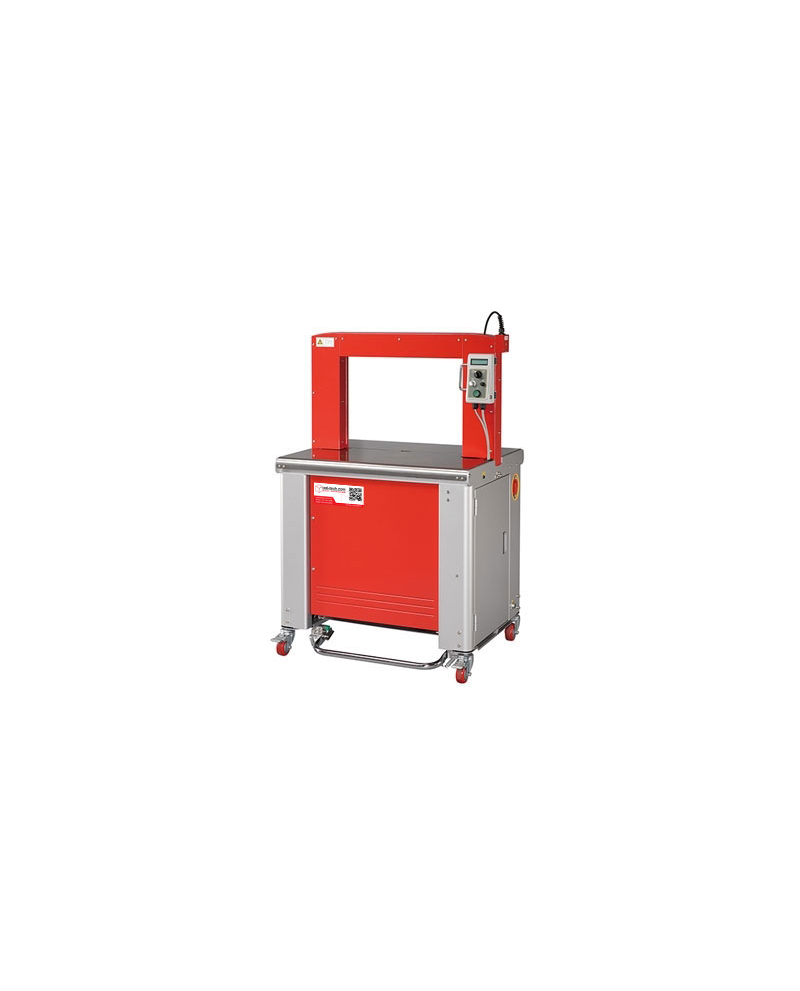

Transpak TP-702-59 Automatic Strapping Machine

New

High-speed automatic strapping machine for professional and intensive packaging operations. Available in two standard stocked arch sizes: 550 × 400 mm and 650 × 500 mm.

More details

Transpak TP-702-59 Automatic Strapping Machine

12

1

0

0

arch-size: 550-400-mm

12

1

0

0

arch-size: 650-500-mm

12

1

0

0

  Add to my wishlist

The TP-702-59 is a high-speed automatic strapping machine designed for professional and intensive packaging operations.
Built for reliable and efficient strapping, the TP-702-59 provides consistent performance for production, warehouse and distribution environments where packages need to be secured quickly and efficiently.
The machine supports polypropylene (PP) strap and operates at speeds of up to 65 straps per minute, making it suitable for applications requiring continuous and repetitive strapping.
Two standard arch-size combinations are normally stocked, allowing the machine to accommodate different package dimensions while maintaining the same reliable TP-702 platform.
Features
- High-speed operation up to 65 straps/min
- Automatic strapping operation
- Designed for professional and intensive use
- Suitable for continuous packaging operations
- Uses PP strapping
- Available with different arch dimensions
- Reliable TP-702 platform for industrial packaging
Applications
Suitable for:
- Warehouses and distribution centers
- Production and assembly lines
- Logistics and fulfillment operations
- Carton and parcel strapping
- General industrial packaging
- High-volume repetitive strapping
Variations
41190105-A55.40 – STEP TP-702-59 550 × 400 – 5mm
Standard configuration with 550 × 400 mm arch.
41190105-A65.50 – STEP TP-702-59 650 × 500 – 5mm
Standard configuration with 650 × 500 mm arch.
Technical Specifications
Specification
550 × 400 mm
650 × 500 mm
Model
STEP TP-702-59
STEP TP-702-59
Arch Size (W × H)
550 × 400 mm
650 × 500 mm
Strapping Speed
Up to 65 straps/min.
Up to 65 straps/min.
Strap Type
PP strap
PP strap
Strap Width
5 mm
5 mm
Strap Core
Ø200/190 mm
Ø200/190 mm
Tension Range
1–32 kg, electrically adjustable
1–32 kg
Machine Dimensions
950 × 750 × 1550 mm
—
Weight
185 kg
—
Electrical Connection
230V, 50Hz
230V, 50Hz
Item Number
41190105-A55.40
41190105-A65.50

Write a review

Transpak TP-702-59 Automatic Strapping Machine

Transpak TP-702-59 Automatic Strapping Machine

High-speed automatic strapping machine for professional and intensive packaging operations. Available in two standard stocked arch sizes: 550 × 400 mm and 650 × 500 mm.
