MV-6-20220 Proximity Sensor – 10–30 VDC
Previous Next

#ON STOCK#

MV-6-20220 Proximity Sensor – 10–30 VDC

MV-6-20220

New

8 Items

MV-6-20220 proximity sensor for strapping machines. 10–30 VDC with 3-core connection: brown V+, blue V− and black signal. Used at multiple sensing positions depending on machine model and configuration.

More details

MV-6-20220 Proximity Sensor – 10–30 VDC

1069

1014

61

20

$ 87.97

  Add to my wishlist

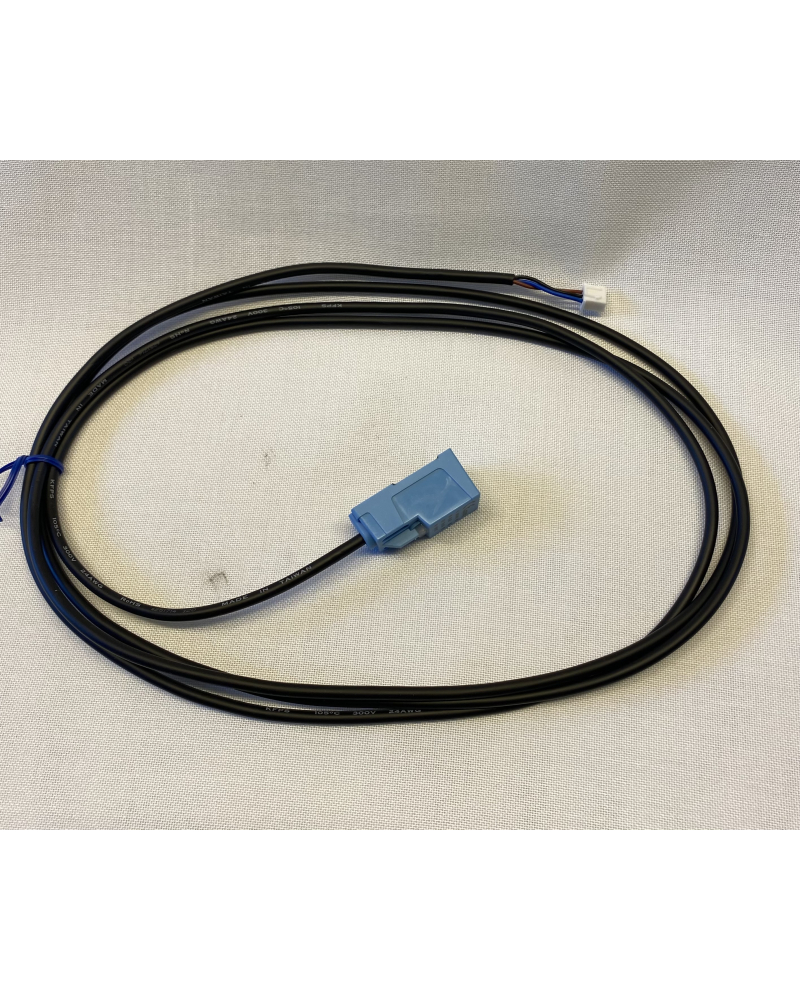

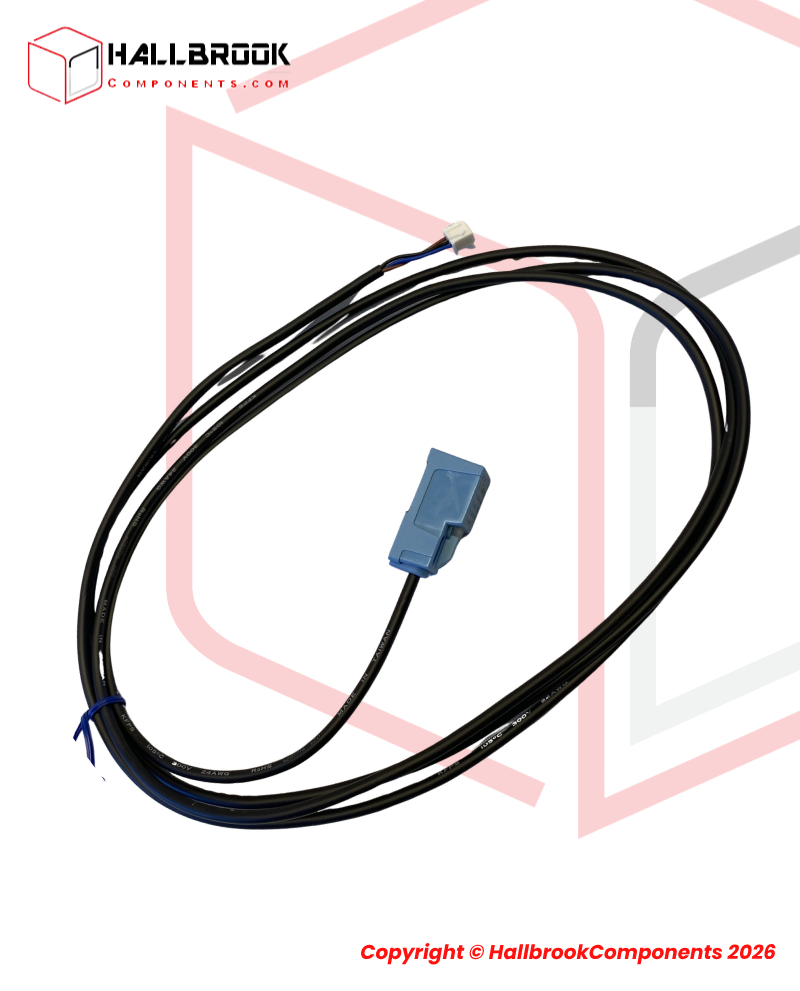

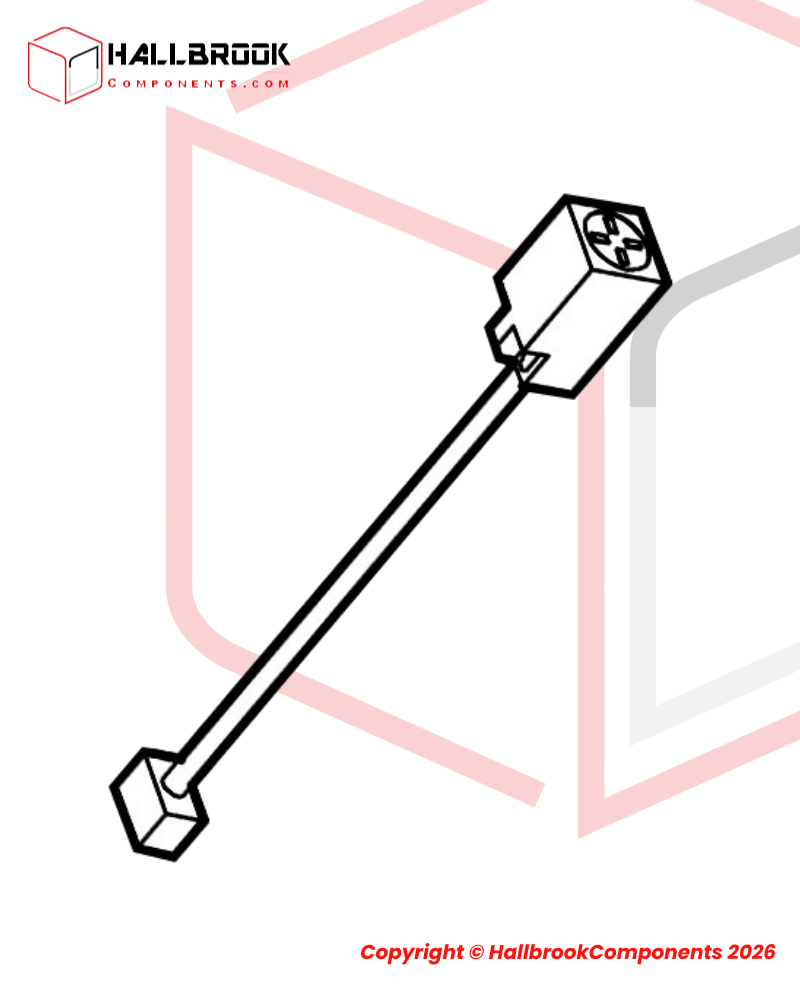

The MV-6-20220 Proximity Sensor is a replacement sensing component used in automatic and semi-automatic strapping machines. It provides non-contact detection for monitoring mechanical positions and supporting the machine's operating sequence.
Designed for reliable machine sensing applications, the MV-6-20220 operates on 10–30 VDC and uses a 3-core electrical connection.
Technical Specifications
Component
Proximity Sensor
Sensor Type
KFPS
Power Supply
10–30 VDC
Wiring
Brown V+ / Blue V− / Black Signal
Connection
3-core
Connector
KLS1-2.50, 2.50 mm pitch JST XH-type wire-to-board connector
Weight
0.058 kg
Item Number
MV-6-20220
Machine Applications
The MV-6-20220 is documented for use across several strapping machine models, including:
TP-702-12, TP-702-59, TP-702P-59, TP-702RS, TP-702C, TP-702B, TP-702BP, and TP-602MV.

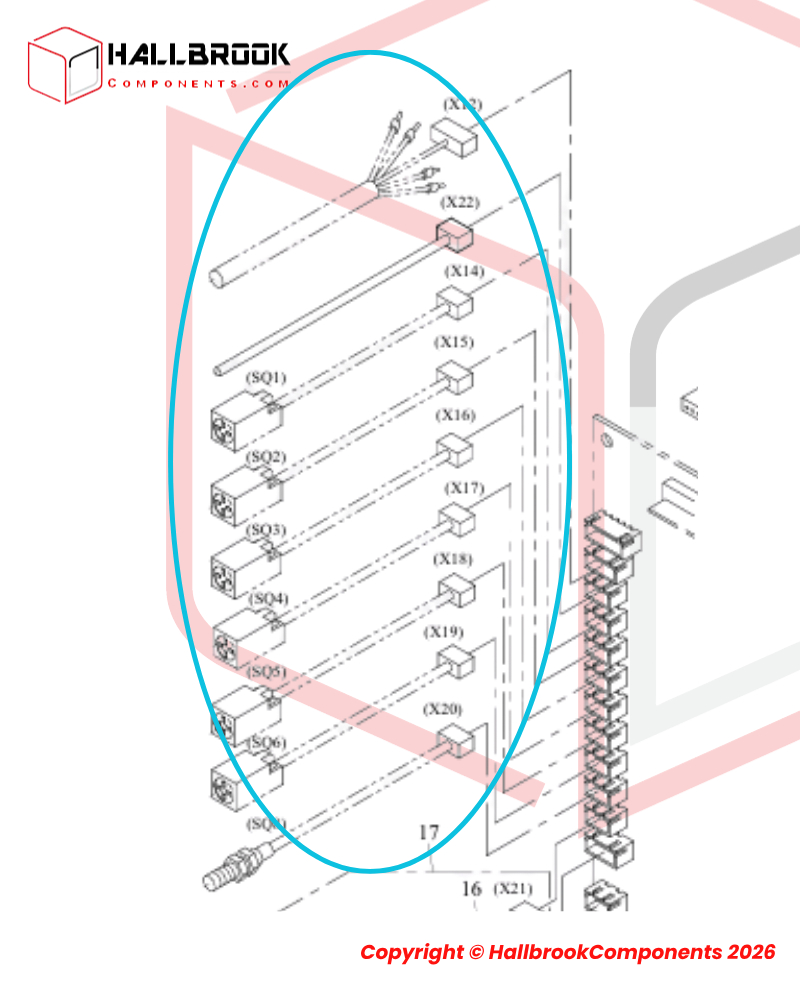

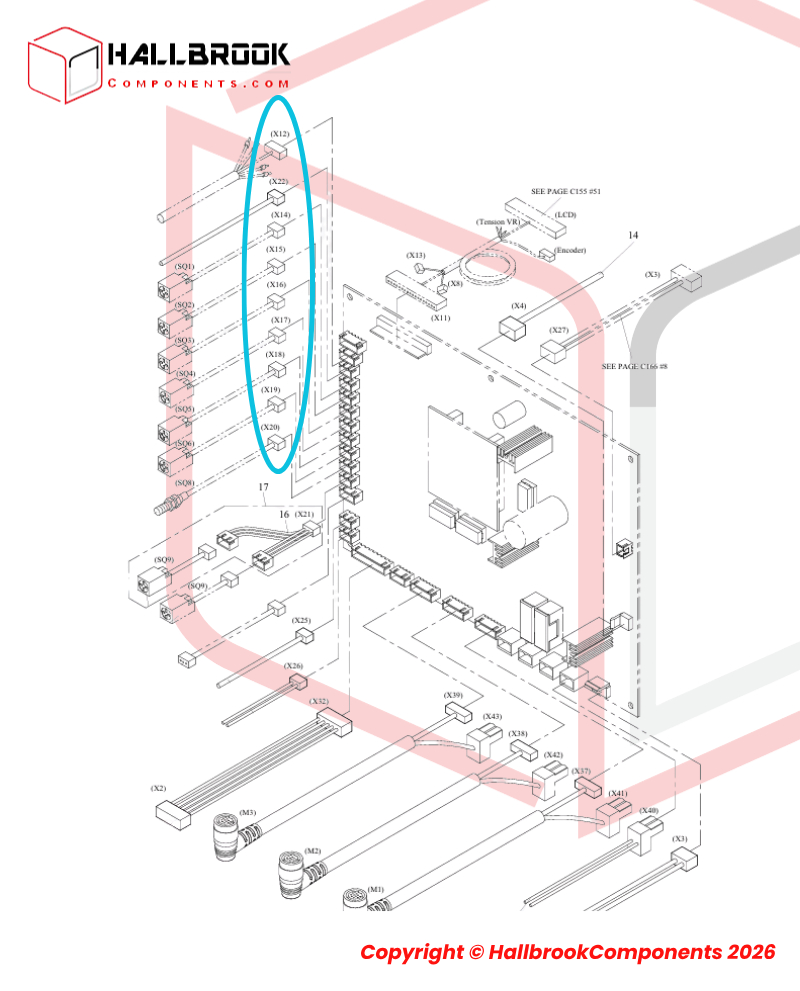

Depending on the machine design, the sensor is used at multiple sensing locations and assemblies, including the Cam Group, Strap Amount Control Group, Inlet Strap Guide, Auto Strap Ejecting Assembly, Arch Cover Group, and Foot Bar Assembly.
The MV-6-20220 is used across multiple sensing locations in supported strapping machines, making it a useful replacement sensor for service, maintenance, and spare-parts requirements.
