Portable semi-automatic pallet strapping machine for vertical applications with 12mm strap width. Features retractable sword, friction weld sealing, and user-friendly operation.

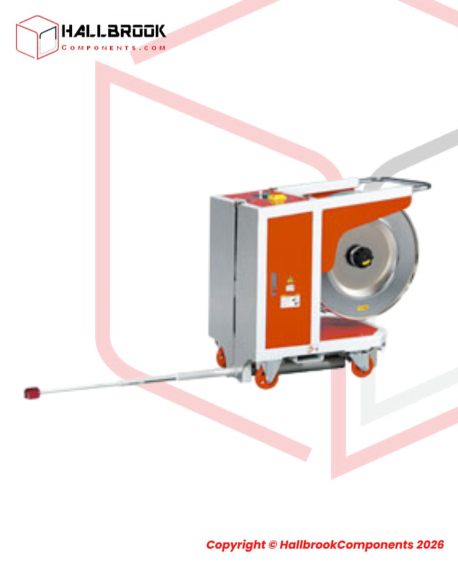

TP-602MV Semi-Auto Pallet Strapping Machine 12mm Strap
55
49
3
0
The TP-602MV Semi-Auto Pallet Strapping Machine is a reliable solution for low to moderate pallet strapping needs. Designed for vertical strapping applications, it supports both PP and PET straps with a strap width of 12 mm. Its retractable sword easily feeds strap through pallet voids without moving the load, saving time and space. With high tension capabilities up to 150 kg, compact structure, and robust construction, the TP-602MV ensures operational efficiency while being easy to maneuver and operate.
Features:
1.Robust and lubrication-free strapping head
2.Retractable sword for vertical strapping
3.Friction weld sealing technology
4.User-friendly control panel
5.High tension (up to 150 kg)
6.Low sealing height for convenience
7.Adjustable weld-cooling time
8.Error message indicator
9.Enhanced mobility with compact design
10.Manual feeding
11.Two operation modes
|
Specifications | |
|---|---|
|
Specifications |
Details |
|
Sealing method |
Friction |
|
Strap width |
12 mm |
|
Strap thickness |
PP: 0.65 - 0.9 mm (0.025" - 0.038") PET: 0.55 - 0.75 mm (0.022" - 0.029") |
|
Strap reel diameter |
Standard: 406 mm (16") Options: 200 mm (8"), 230 mm (9"), 280 mm (11") |
|
Machine dimensions |
Width: 571 mm (22.48") Depth: 2096 mm (82.52") |
|
Electrical connection |
230V 50Hz 1 Phase Options: AC 110V/220V/230V/240V (50/60Hz), 1 Phase |
|
Weight |
162 kg (357 lbs) |
|
Noise emission |
85 dB (A) |
|
Ambient temperature |
5°C to 40°C (41°F to 104°F) |
|
Item No. |
41001012 |
Application:
Ideal for warehouses, logistics centers, and packaging areas, the TP-602MV excels in vertical pallet strapping for carton boxes and bulky loads. Its retractable sword mechanism makes it suitable for strapping stacked goods on pallets without repositioning the load.
